Equipped With
Specifications:
- Speed: The wire feed rate can be up to 200 mm/sec. (about 45 pcs./min.)
- Rod lengths between 180 - 350mm
- The concentricity accuracy of the reduced section is approximately 0.03 mm.
- Largest Reduction: up to 3,44mm (M4) possible. For example: 3,44x3.03x3,44mm.
- Smallest Reduction: down to 2,00x1,60x2,00mm possible. For example 2,0x1,5x2,0 is possible
Features:
For the production of butted spoke blanks made of stainless steel for bicycles and e-bikes.

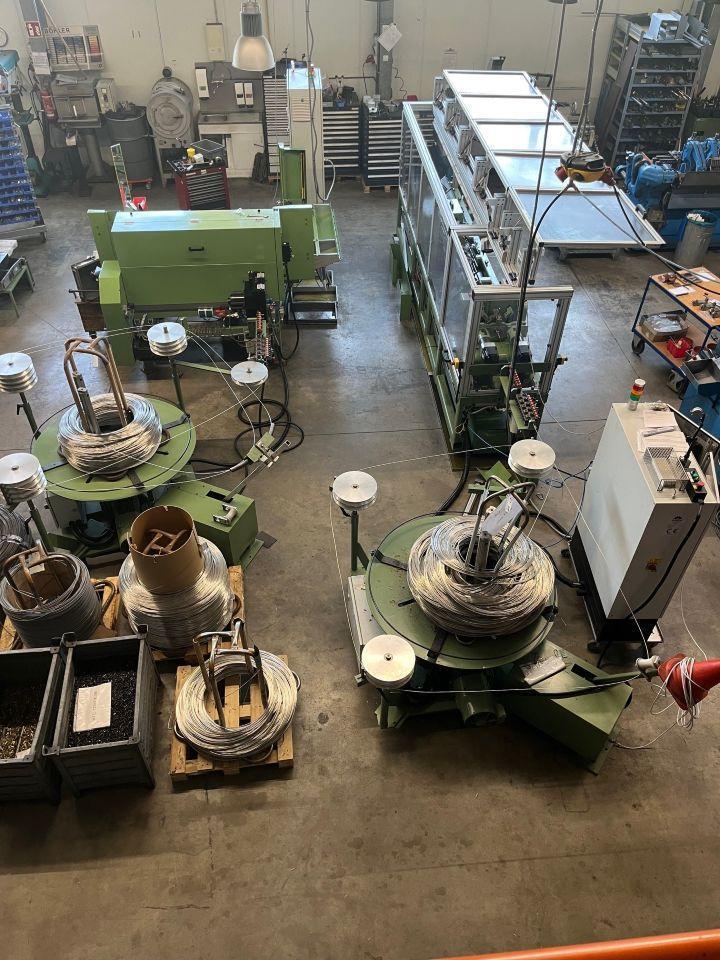

Unwinding from the coil to the single or double butted and straightened spoke blank.
■ The process used to reduce the wire diameter is carried out by servo-controlled forming rollers.
■ For unwinding from the coil, a driven wire decoiler and then a roll straightener are connected upstream.
■ For the feed, two servo-controlled ball screw spindles are moving the clamping units on slides.
■ To achieve exact straightness, the wire, which has been reduced in sections, passes through a rotating straightener.
■ Finally, the blank is cut to the preset length
■ Central control panel incl. recipe management and separate control box for setting up the process
